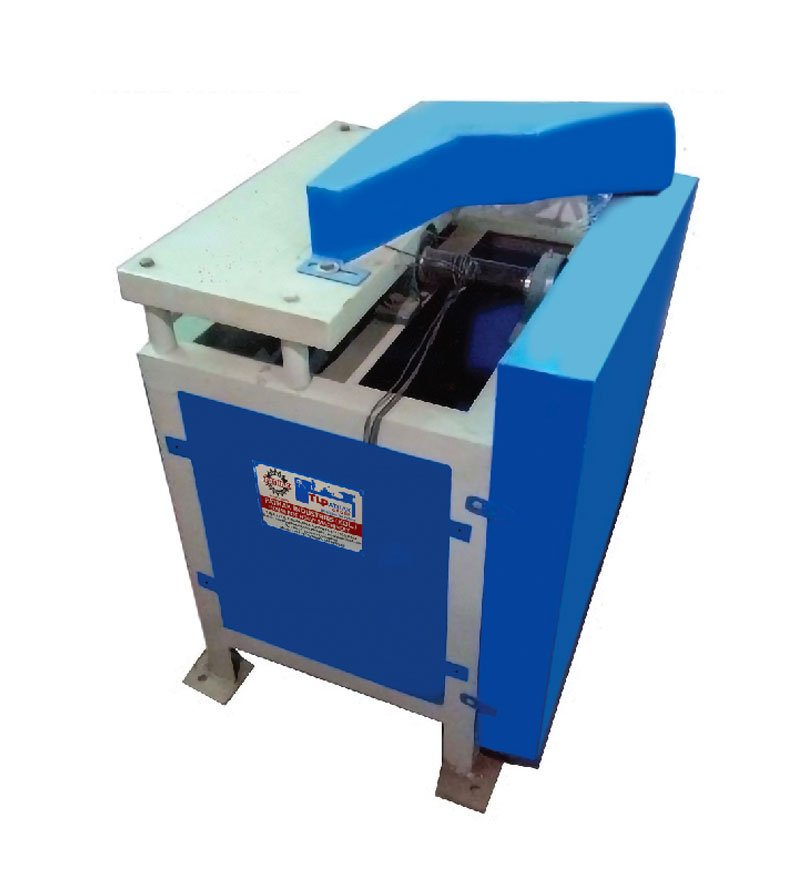

Maximum diameter of bamboo that can be cut 0.2M Dimensions of the machine, in meters 1x1x1.2 Net weight, in kilograms 200 KG Maximum diameter of C.T.C.S. 10″ Power Consumption 2 H.P. Labour Requirement Semi-Skilled Here are some key features and aspects of a bamboo external and internal knot removing machine: Structure The machine typically consists of a sturdy frame or base that supports various components, including a cutting assembly, clamping system, and motorized mechanisms. The frame may have adjustable settings to accommodate different sizes and shapes of bamboo poles. Cutting Assembly The cutting assembly of the machine includes blades or cutting tools designed to remove the external and internal knots from the bamboo poles. The blades are positioned and configured to target specific areas of the bamboo, ensuring precise and efficient knot removal. Clamping System The clamping system holds the bamboo poles securely in place during the knot removal process. It may feature adjustable clamps or fixtures that allow for different sizes of bamboo poles to be processed. Motorized Mechanisms The machine is typically equipped with motorized mechanisms that drive the cutting assembly and control the movement of the blades. This automation helps to streamline the knot removal process and improve efficiency. Control System Some models of bamboo knot removing machines may have a control panel that allows operators to adjust parameters such as cutting depth, blade speed, and machine operation modes. The control system provides an interface for programming and monitoring the machine’s operation. Safety Features Bamboo knot removing machines are equipped with safety features to protect the operator during operation. These may include emergency stop buttons, safety interlocks, and guards to prevent access to moving parts.
