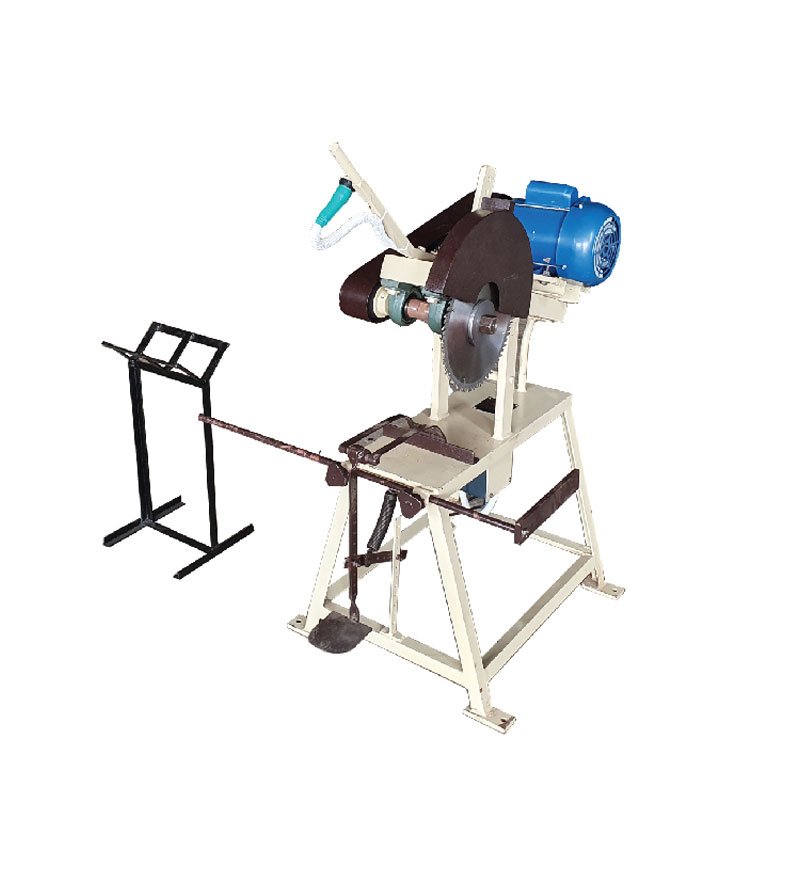

Maximum diameter of Bamboo that can be cut 0.2 M (8″) Dimensions of the machine 3′ <1.5′ 4′ Net Weight. In kilograms 75 kg Maximum diameter of C.T.C.S. 12″ Power Consumption 1.5H.P. Here are some key features and aspects of a bamboo cross-cut machine: Structure The machine typically consists of a sturdy base or frame that supports various components, including a cutting assembly, feed system, and control mechanisms. The frame provides stability and rigidity during the cutting process. Cutting Assembly The cutting assembly of a bamboo cross-cut machine includes a blade or cutting mechanism designed for making clean and accurate cross-cuts. The blade may be circular or straight, depending on the machine’s design. It is positioned and oriented to achieve precise cuts across the bamboo culms. Feed System The feed system of the machine is responsible for moving the bamboo poles or culms through the cutting assembly. This can involve feed rollers, conveyor belts, or other mechanisms to ensure a controlled and continuous feed rate, resulting in consistent cross-cutting. Adjustable Settings Bamboo cross-cut machines often have adjustable settings to allow operators to control the cutting length and other parameters. These settings enable precise and uniform cross-cutting, ensuring consistent lengths for the bamboo segments. Safety Features Bamboo cross-cut machines are equipped with safety features to protect the operator during operation. These may include safety guards, emergency stop buttons, and safety interlocks that prevent access to moving parts. Efficiency and Productivity The machine is designed for efficient cross-cutting of bamboo, allowing for high productivity. It reduces the need for manual labor and provides consistent results in terms of length and quality of the cut bamboo segments.
