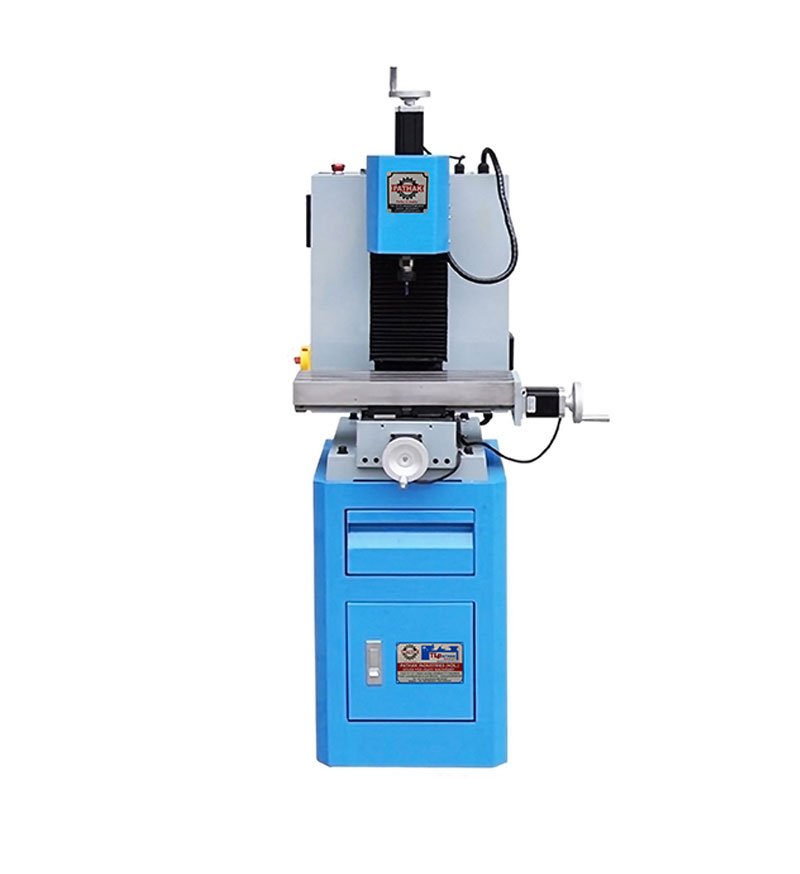

Max. drilling dia. 13mm Max. milling dia. 13mm Max. tapping dia. — Spindle speed 3000 RPM Spemdle center to column distance 189mm Spindle nose to table distance 205mm Spinder taper ER20 T-slot size 12mm Worktable size 400x140mm X axis travel 220mm Y axis travel 120mm Z axis travel 200mm Main motor power 400W Main motor power Brushless motor 0-5V analog speed regulation Feeding motor torque N.m 2.6/2.6/3.2 Nm Feeding motor type Stepper motor with open loop Control system Mach3 Here’s how it typically works: Machine Structure A CNC router with a rotary attachment consists of a sturdy machine structure, similar to a standard CNC router. It includes a bed or table where the workpiece is placed and a gantry or spindle assembly that moves along the X, Y, and Z axes. Rotary Attachment The rotary attachment is an additional component that is attached to the machine. It usually consists of a chuck or clamp mechanism that securely holds the workpiece and a motorized rotary axis that rotates the workpiece. Software and Programming To operate the CNC router with a rotary attachment, you need to use compatible software. This software allows you to design your 2D or 3D models, convert them into machine-readable G-code, and control the movements of the machine. Workpiece Setup Before starting the machining process, you need to prepare the workpiece. Depending on the design, you may need to mount the workpiece on the rotary attachment using the chuck or clamp mechanism. The attachment should be aligned correctly so that the rotation axis aligns with the desired rotational axis of the workpiece. Tooling Selection Choose the appropriate cutting tools for the job, considering factors like the material being machined, desired cut quality, and the specific operation you want to perform. Machining Operations Once the setup is complete, you can initiate the machining process. The CNC router with a rotary attachment can perform a variety of operations, such as engraving, carving, drilling, and cutting, while simultaneously rotating the workpiece. The rotary attachment allows you to create intricate designs on cylindrical objects, such as posts, columns, table legs, or even decorative items like vases. Monitoring and Safety During the machining process, it’s essential to monitor the machine’s operation and ensure safety precautions are followed. Keep an eye on the tool’s performance, check for any issues, and be aware of any potential hazards
