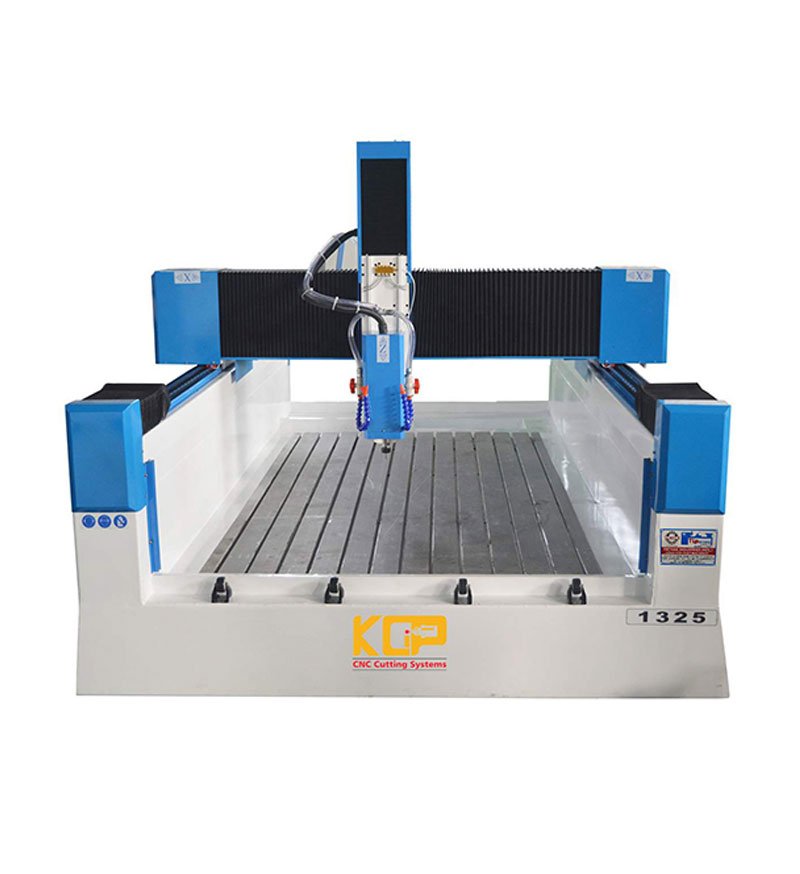

DESCRIPTION CSR-14024 X-Y-Z Axis Movement 1300mm x 2500mm x 200mm Repositioning Accuracy 0.01m X-Y Movement Taiwan Rack & Pinion Transmission Z Movement German Ball Screw Table Size 1440mm x 3040mm Max Idiling Speed 35m/min Max Cutting Speed 25m/min Working Volatge 3/380 V / 50 Hz Spindle Water Cooled Spindle 4.5 kw(6HP) Spindle Rotating Speed 0-24000 RPM Drive Motor Servo Command G code (*.mmg, *.tap, *.plt ) Computer interface USB Controls NK 105 / NC Studio Collet Size 6mm, 8mm, 12mm Work Piece Holding Manual T Slot Clamping Water tank Yes Auto Water Cooling System Yes Here are some key features and components of a CNC stone router: Spindle The spindle in a CNC stone router is the motorized component that holds and rotates the cutting tool or router bit. It is specially designed to handle the rigors of cutting and carving stone materials. Cutting Table The cutting table provides a sturdy and flat surface where the stone slab or workpiece is placed and secured during the routing process. The table may have clamps or vacuum hold-downs to keep the stone in place. Control System The CNC stone router is operated through a control system that consists of a computer and CNC software. The operator uses the software to program the cutting specifications and design instructions, which are then executed by the machine. Diamond Tooling Instead of conventional metal router bits, CNC stone routers use diamond tooling. Diamond tools are specifically designed for cutting and shaping hard stone materials. They can vary in shape, size, and configuration to achieve different cutting and carving effects. Dust Collection System Stone cutting and carving generate a significant amount of dust and debris. A CNC stone router often includes a dust collection system to remove the stone particles, keeping the work area clean and maintaining visibility during the cutting process. Water Cooling System To prevent overheating of the cutting tools and to reduce dust during cutting, a CNC stone router may have a water cooling system. Water is sprayed onto the cutting area to keep the tools and the stone material cool, prolonging the lifespan of the tools and improving cutting performance.
