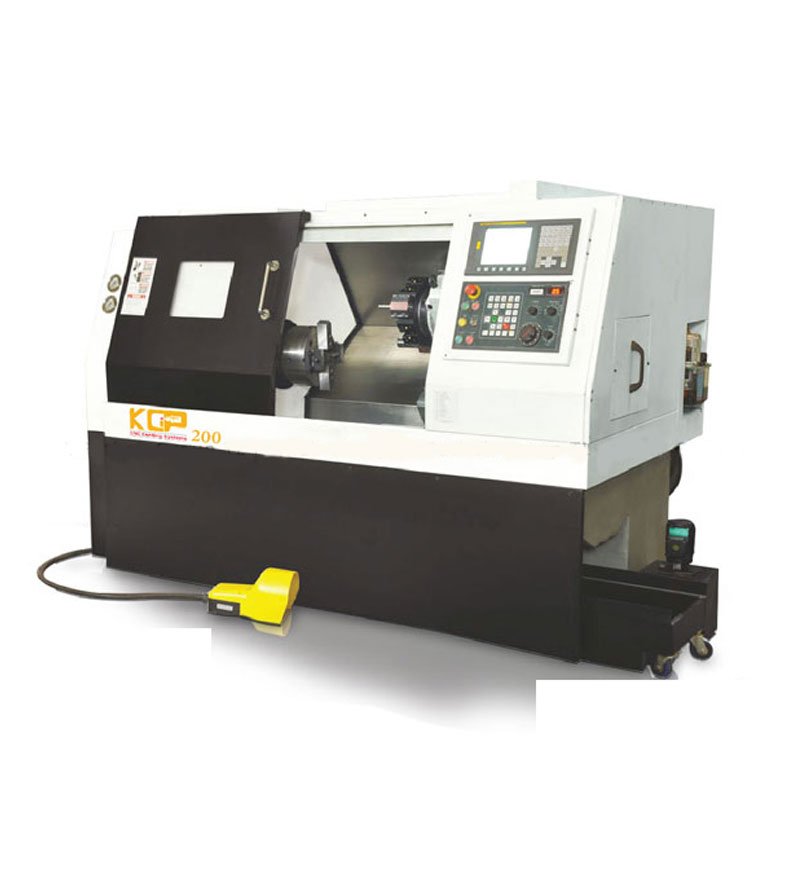

CAPACITY KCP TURN 165 KCP TURN 200 KCP TURN 230 KCP 230L Swing over Bed mm 475 500 500 500 Maximum Turning Dia. mm 275 300 350 350 Standard Turning Dia. mm 165 200 230 230 Max.Turning Length (with chuck) mm 280 300 500 500 Admit Between Centres mm 350 350 600 1200 Chuck Size mm 170 200 210 210 TRAVERSES Cross (X-Axis) Travel mm 175 175 175 175 Longitudinal (Z-Axis) Travel mm 350 550 550 1120 Rapid Feed (X & Z Axis) m/min 30/30 30/30 30/30 30/30 MAIN SPINDLE Spindle Motor Power cont/30 min. 5.5/75KW 5.5/75KW 5.5/75KW 5.5/75KW Spindle Bore mm 45 45 56 56 Spindle Nose A2-5 A2-5 A2-6 A2-6 Max.Bar Capacity mm 38 38 48 48 Spindle Speed Range rpm 50-4500 50-4000 50-3500 50-3500 Full Power Speed Range rpm 100-3300 1000-3300 1000-3000 1000-3000 TAIL STOCK Quill Dia. mm 80 80 80 80 Quill Taper mm MT4 MT4 MT4 MT4 Quill Stroke mm 100 100 100 100 Base Travel mm 250 250 400 400 TURRET No. of Tool Position No. 8 8 8 8 Tool Shank Size mm 25×25 25×25 25×25 25×25 Max Boring Bar Dia. mm 40 40 40 40 Positioning Uncertainty 0.007 0.007 0.007 0.007 Repeatability mm 0.003 0.003 0.003 0.003 OTHER Weight ( Approx.) kgs. 3400 3500 3900 4300 Dimension (Approx.) (L x W x H) 2600x1450x1800 2600x1450x1800 2600x1450x1800 2600x1450x1800 Here are some key features and components of a CNC lathe machine: Bed The bed is the main structural component of the machine that provides support and rigidity. It is usually made of cast iron or steel and provides a stable platform for the other components. Headstock The headstock houses the main spindle, which rotates the workpiece. It contains the motor and gearbox that drive the spindle at various speeds. The headstock may also have a chuck or collet mechanism to securely hold the workpiece. Tool Turret The tool turret or tool post is where the cutting tools are mounted. It can hold multiple tools and is capable of automatic tool changes. The turret is indexed to position different tools in front of the workpiece for various machining operations. Tailstock The tailstock is located on the opposite end of the headstock and provides additional support for long workpieces. It can be adjusted along the bed and may include a center or other supporting devices. Control System The CNC lathe machine is controlled by a computer numerical control (CNC) system. The operator uses software to program the machine with cutting specifications, tool paths, and other parameters. The control system translates these instructions into precise movements of the machine components. Stepper or Servo Motors CNC lathes use stepper or servo motors to drive the movements of the cutting tools, workpiece, and other machine components. These motors provide precise positioning and speed control as directed by the CNC software. Coolant System A coolant system is used to remove heat and chips generated during cutting operations. It may involve a coolant pump and a nozzle that sprays coolant onto the cutting area.
