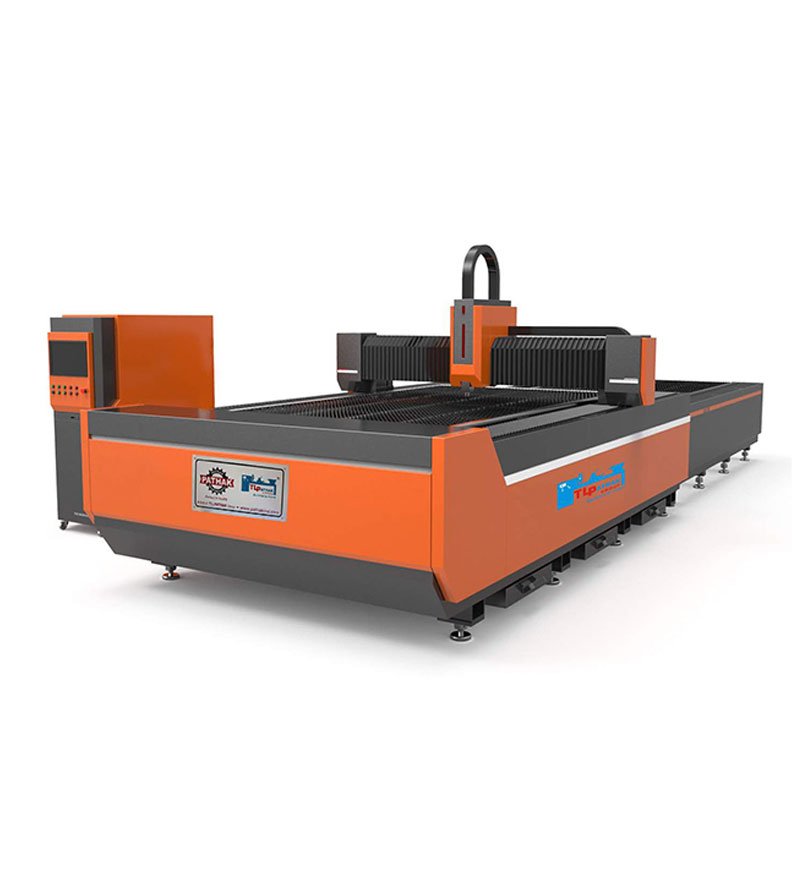

1000W fiber laser cutter cutting Thickness – Best Cutting Thickness Max Cutting Thickness CS 8mm 10mm SS 5mm 6mm Aluminium 2mm 3mm Copper 2mm 3mm Working size 1500*300mm Watts 1000W Libricate System Yes Auto libricate Automatic Laser device Rycus Cutting head JiaQiang Motor Japan FUJI servo Reduser Japan XINBAO Rail HSAC(Taiwan) Chiller XQL Operating System Cypcut Max working size 3000*1500mm Z axis TBI ball screw X working size 1500mm Y working size 3000mm Z working size 120mm Here are some key features and components of a CNC fiber laser cutting machine: Fiber Laser Source The fiber laser source generates a concentrated laser beam using optical fibers and laser diodes. The laser beam is directed through the machine’s optics system to the cutting head, where it is focused onto the workpiece. Cutting Head The cutting head contains the focusing lens, nozzle, and other components that control the laser beam’s focus and shape. It is designed to deliver the laser beam precisely to the material being cut. CNC Control System The CNC control system is the brain of the machine, consisting of a computer and CNC software. The operator uses the software to program the cutting specifications, tool paths, and other parameters. The control system translates these instructions into precise movements of the machine and controls the laser power and cutting speed. Cutting Table The cutting table provides a stable surface where the workpiece is placed during the cutting process. It may include features such as a slat bed or a honeycomb bed to support the material and allow for efficient removal of laser-cut debris. Exhaust System Laser cutting produces smoke, fumes, and debris. An exhaust system is used to extract and remove these byproducts from the cutting area, maintaining a clean work environment and improving visibility. Cooling System Fiber lasers generate heat during operation, and a cooling system is used to dissipate this heat and maintain optimal operating temperature. It typically consists of a water chiller and a series of tubes to circulate cooled water through the laser source. Safety Features CNC fiber laser cutting machines incorporate safety features such as safety interlocks, protective enclosures, and sensors to ensure safe operation and protect against laser radiation.
