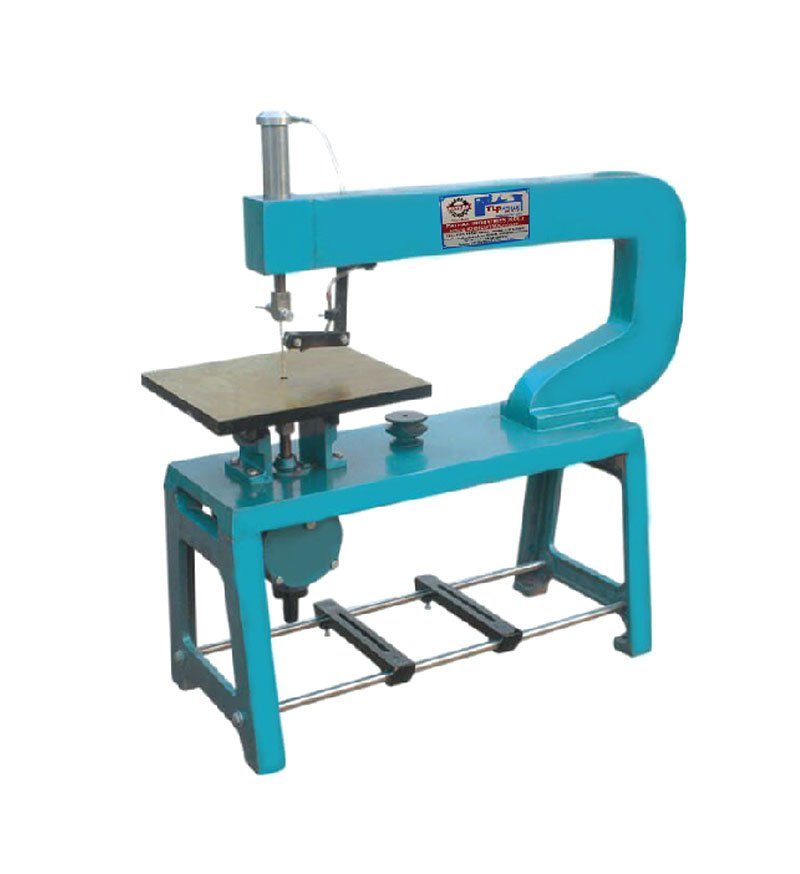

Model No. JWWM-13012 JWWM-13013 Cutting Capacity 24″ x 2″ 36″ x 2″ Table Size 15″ x 15″ 15″ 1 15″ Tilting Table 15′ Right Left 15′ Right Left Speed 520, 720, 960 RPM 520, 720,960 RPM Power Required 0.5 HP 0.51 Running Motor RPM 1440 1440 Here are some key features and aspects of a jigsaw woodworking machine Blade Mechanism The machine consists of a reciprocating blade that moves up and down rapidly to cut through the material. The blade is typically thin and narrow, allowing for tight curves and intricate cuts. Variable Speed Control Many jigsaw machines have a variable speed control feature that allows the operator to adjust the cutting speed. This feature is beneficial when working with different materials and cutting techniques. Cutting Capacity Jigsaws have a limited cutting depth compared to other woodworking machines. The cutting capacity depends on the specific model but is typically sufficient for cutting thin to medium-thickness materials. Bevel Cuts Some jigsaw machines offer the ability to make bevel cuts, allowing the blade to tilt at an angle to create angled edges or joints. This feature enhances the versatility of the machine for various woodworking projects. Orbital Action Certain jigsaw models feature an orbital action mechanism that moves the blade in an elliptical or orbital motion. This action helps to remove material more quickly and efficiently, especially in thicker or denser materials. Base Plate The machine has a base plate or shoe that provides stability and support during cutting. The base plate is typically adjustable, allowing for angled cuts or bevel cuts. Dust Extraction Many jigsaw woodworking machines have a dust extraction or dust collection port that can be connected to a vacuum or dust collection system. This helps to remove dust and debris from the cutting area, improving visibility and maintaining a cleaner workspace. Blade Changes Jigsaw machines generally allow for easy and quick blade changes. Blades can be swapped out to accommodate different cutting requirements, such as cutting different materials or achieving different cutting patterns. Jigsaw woodworking machines are commonly used for various woodworking tasks, including cutting intricate patterns, curves, and interior cutouts. They are suitable for projects such as crafting, making puzzles, creating scrollwork, and more. Jigsaws are especially valuable for detailed and artistic woodworking projects that require precise and intricate cuts.
