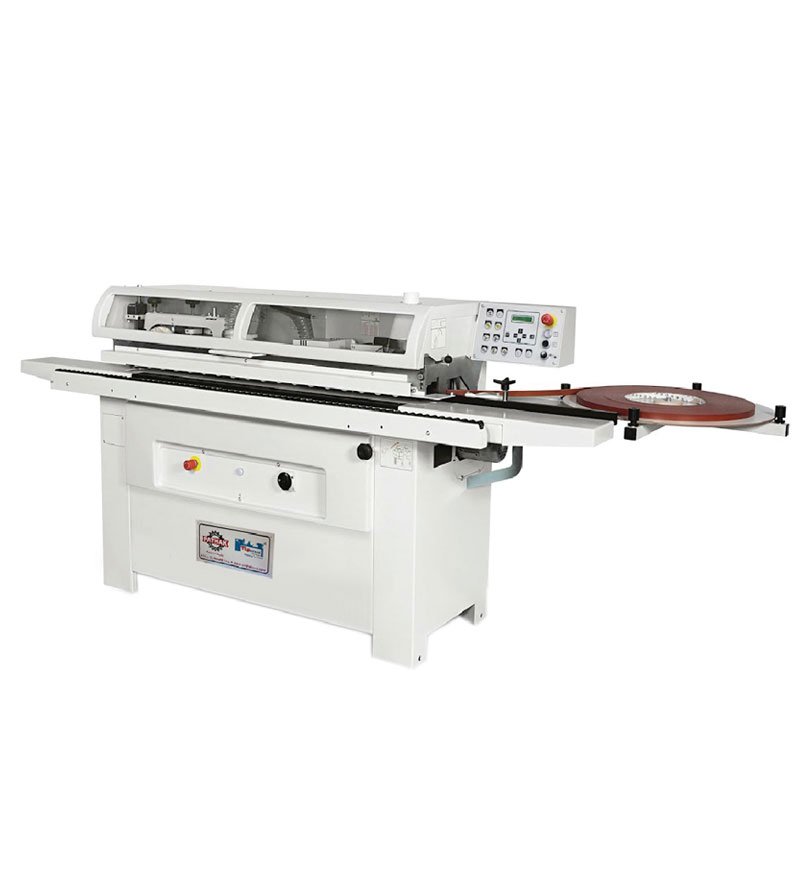

DESCRIPTION TF-5 / TF-6 Panel Thickness Without Round Trimming 10-60 mm Panel Thickness With Round Trimming 10-45 mm Panel Width Without Round Trimming Min.60mm Panel Width With Round Trimming Min. 130mm Panel Length Without Round Trimming Min.120mm(PVC) Panel Length With Round Trimming Min.140mm Edge Thickness Without Tound Trimming 0.4 15mm Edge Thickness With R Round Trimming 0.4 to 3mm Edge Width Without Round Trimming 10-65mm Edge Width With Round Trimming 15-50mm Feeding Speed Without Round Trimming 13-18m/min Feeding Speed With Round Trimming 13m/min Installed Power 8.58KW Pneumatic pressure 6-8kg/Cm2 Here are some key features and aspects of an automatic edge bander: Machine Structure An automatic edge bander consists of a solid machine frame or base that supports various components, including feed systems, glue application units, pressure rollers, trimming units, and cutting systems. Feed System The feed system of an edge bander is responsible for moving the workpieces through the machine. It typically includes a conveyor belt or rollers that feed the panel into the machine at a controlled speed. Glue Application Edge banders have a glue application system that applies adhesive to the edge of the panel. This can be achieved through various methods, such as hot melt glue pots or glue cartridges. The glue is applied evenly to ensure proper adhesion between the edge banding and the panel. Edge Banding Application The edge banding material is fed into the machine, and the edge bander uses pressure rollers or other mechanisms to press the banding firmly against the panel’s edge. The banding is guided along the edge, ensuring precise alignment and bonding with the panel. Trimming and Finishing Automatic edge banders often include trimming units that trim the excess edge banding material flush with the panel surface. This can involve various cutting mechanisms, such as top and bottom trimmers, end trimmers, or profile trimmers. Some machines may also have buffing or scraping units to provide a smooth and finished edge. Control System Edge banders feature a control system that allows operators to set parameters such as feed speed, glue application rate, trimming depths, and other settings. The control panel typically provides an interface for programming and monitoring the machine’s operation. Safety Features Automatic edge banders are equipped with safety features to protect the operator during operation. These may include emergency stop buttons, safety interlocks, and guards to prevent access to moving parts.
