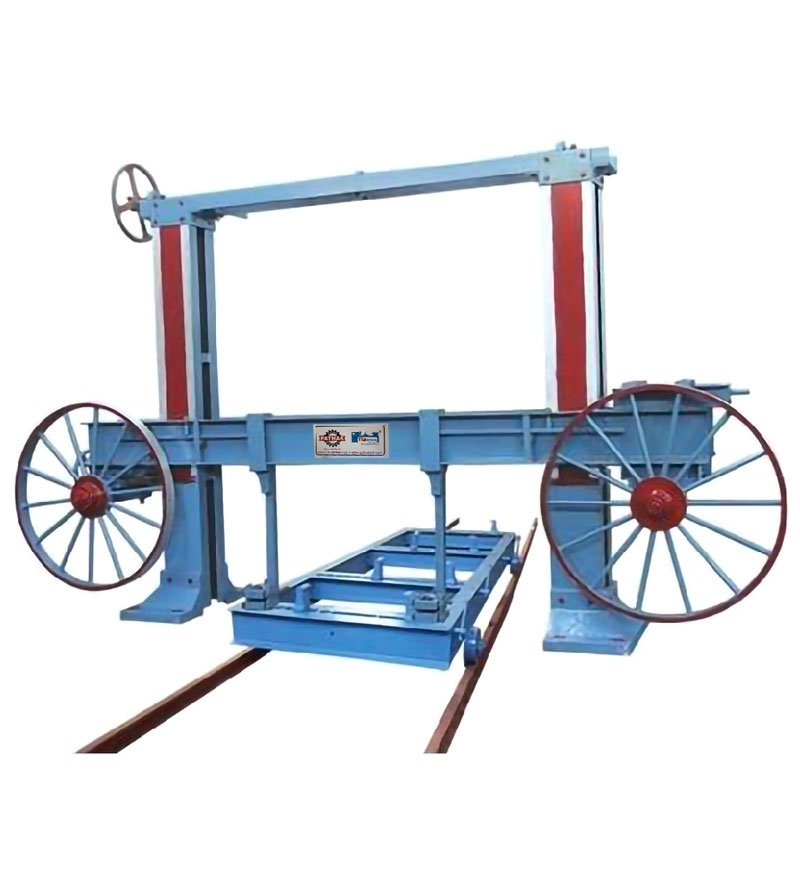

Diameter of Saw Wheel 42″ 48″ Width of Saw wheel 3 3 Trolley Size 12’x3.5′ 16’x4′ 12’x3.5 16’x4′ Blade Length 32 ft 32 ft Approx Speed of Saw Wheel- RPM 540 540 Power Required 15hp 20hp Here are some key features and aspects of a horizontal trolley bandsaw for saw mills: Frame and Structure The machine typically consists of a heavy-duty frame and structure that provides stability and support during the cutting process. It is designed to handle large logs and withstand the rigors of sawing. Bandsaw Blade The horizontal trolley bandsaw uses a continuous loop bandsaw blade that moves horizontally through the log. The blade is tensioned tightly to ensure accurate and straight cuts. Trolley System The trolley system carries and moves the log through the cutting process. It is typically equipped with rollers or other mechanisms to facilitate smooth and controlled movement of the log along the cutting path. Log Clamps or Dogs The machine may feature log clamps or dogs that secure the log in place during cutting. These clamps or dogs ensure stability and prevent the log from shifting or moving during the sawing operation. Blade Guides The machine is equipped with blade guides that support and guide the movement of the bandsaw blade. The blade guides help maintain proper blade alignment, minimize blade deflection, and ensure smooth cutting performance. Cutting Capacity Horizontal trolley bandsaws for saw mills have a significant cutting capacity, allowing for the processing of large logs of various sizes. The maximum cutting capacity is determined by the throat depth, which is the distance between the blade and the frame. Power and Control The machine is powered by an electric motor or other power source. It may feature a control panel or system for adjusting the cutting speed, feed rate, and other cutting parameters. This control system allows for customization based on the specific requirements of the logs and lumber being processed. Safety Features Horizontal trolley bandsaws for saw mills are equipped with safety features to protect the operator during operation. These can include safety guards, emergency stop buttons, and safety interlocks to prevent access to the blade and other moving parts.
