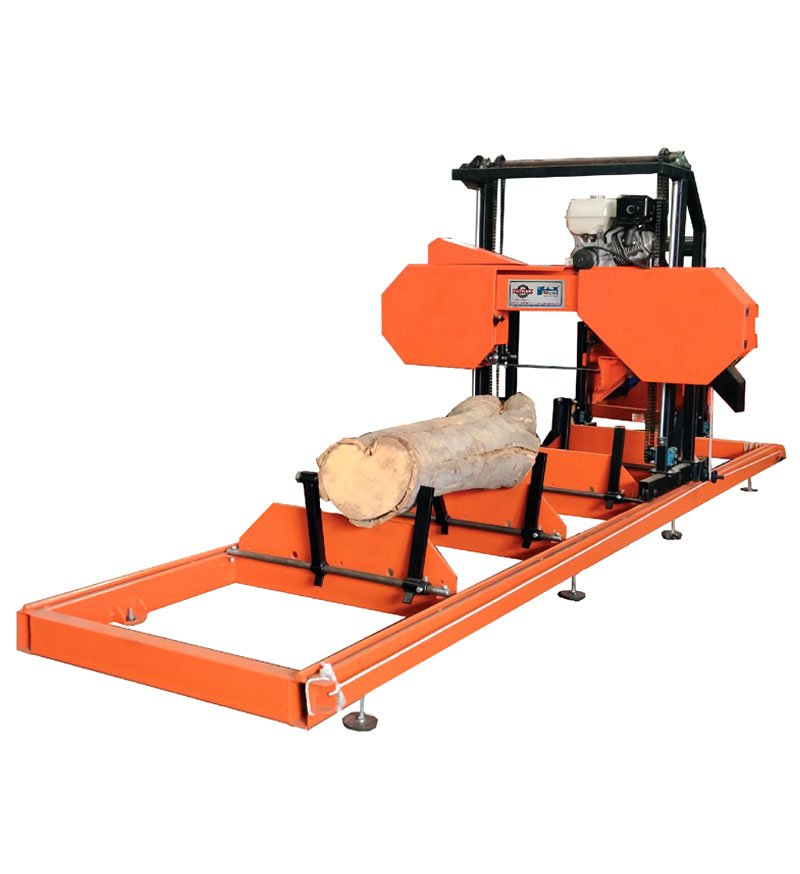

Wheel (Diameter x Width) Casting 18″x1.5″ Blade (Length x Width) 13″x1.5″ Power Option Petrol 10HP-3600 rpm (Honda GX390, Manual Start) 10HP 3 Phase Electric Motor Bed Size 5m x 1m (Custom Bed Length Available) Max. Log Diameter Cutting Capacity 24″ Max. Length of Cut 14′ (can be extended with bed extension) Max. Width of Cut 24″ Max. Depth of Cut 10″ Band Saw Head Reverse Forward Up-Down Manual Hand Crank Blade Height Indication Red pointer on a scale Number of Side Supports for Log 3 Nos Number of Log Clamps 3 Nos Number of Bed Leveling Feet 8 Nos Blade Guide Arm Fixed Trolley System The bandsaw mill is mounted on a trolley or carriage that moves along a track or rails. The trolley allows for smooth and controlled movement of the bandsaw blade along the length of the log during the cutting process. Bandsaw Blade The bandsaw blade is a continuous loop blade that moves in a horizontal direction. It is tensioned tightly to ensure accurate and straight cuts. The blade is driven by a motor and guided by wheels or guides to maintain proper alignment. Log Support and Clamping The sawmill has a system of log supports and clamps to secure the log in place during cutting. This ensures stability and prevents the log from shifting or moving while being cut. Adjustable Cutting Depth The cutting depth of the bandsaw blade can be adjusted to accommodate different log sizes and desired lumber thicknesses. This allows for flexibility in cutting various dimensions of lumber. Log Turning Mechanism Some portable sawmills with trolley-type bandsaws may feature a log turning mechanism, such as a log ramp or log rolling system. This facilitates the rotation and repositioning of the log for cutting different sides and angles. Power Source Portable sawmills can be powered by various sources, such as gasoline engines, diesel engines, or electric motors. The power source provides the necessary energy to drive the bandsaw blade and other moving components. Blade Maintenance and Adjustment Proper maintenance and adjustment of the bandsaw blade are essential for optimal cutting performance. This includes regular blade sharpening or replacement, tension adjustment, and alignment checks. Portability and Easy Setup The portable design of the sawmill allows for easy transportation and setup at different job sites. It can be assembled, disassembled, and transported to different locations as needed.
