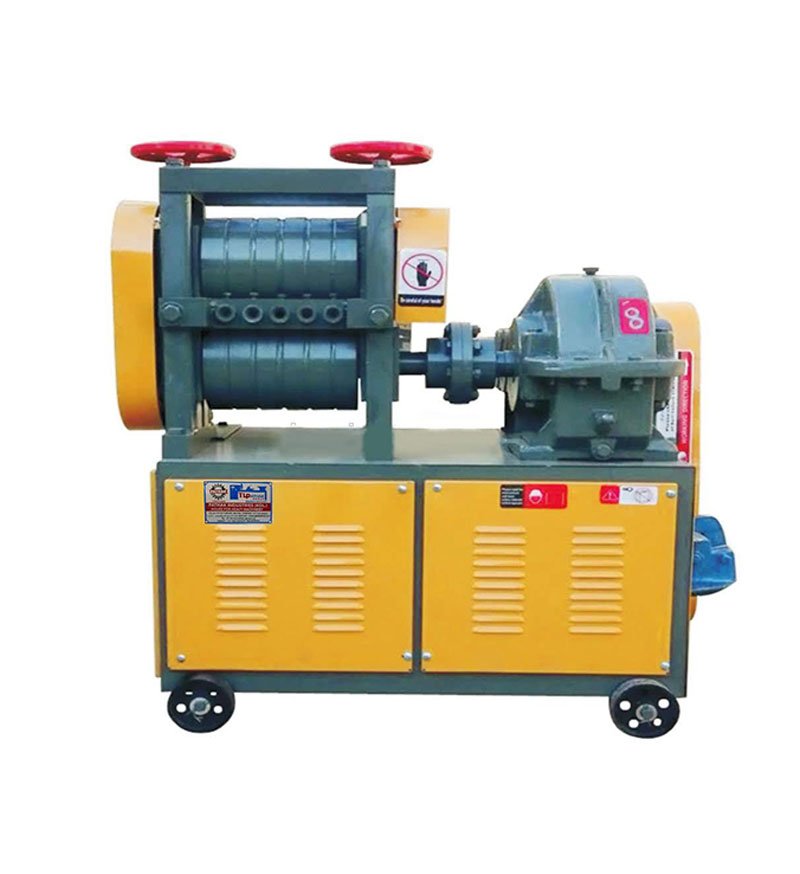

MODEL SSM-12013 Speed of Working 28 m/min Cutting Space 500 – 6000 MM (can be longer) Motor Power 5.5 KW, 2.2KW Reducer 1:350 Straightening Dimeter 6 – 12 mm Weight 450 kg Here are some key features and aspects of a scrap straightening machine: Straightening Mechanism The machine utilizes a straightening mechanism that consists of a series of adjustable rollers or dies. The scrap material passes through these rollers or dies, which apply pressure and bending forces to gradually straighten and flatten it. Material Compatibility Scrap straightening machines can handle various types of metal materials, including steel, aluminum, copper, brass, and other alloys. The machine’s specifications should align with the specific material and thickness requirements. Straightening Capacity The machine’s capacity refers to the maximum thickness and width of the scrap material it can handle. It is essential to select a machine that can accommodate the dimensions of the scrap materials to be processed. Adjustable Settings Scrap straightening machines offer adjustable settings to control the straightening process. Operators can adjust parameters such as roller pressure, roller spacing, and feed speed to achieve the desired level of straightening. Speed and Efficiency These machines are designed for high-speed operation, allowing for efficient processing of scrap materials. The feed speed can be adjusted to match the material and processing requirements, ensuring optimal productivity. Safety Features Scrap straightening machines are equipped with safety features to protect operators and prevent accidents. These can include safety guards, emergency stop buttons, and sensors to detect irregularities or obstructions in the material flow. Control System The machine is operated using a control panel or console that allows operators to adjust settings, monitor the straightening process, and ensure safe and efficient operation. Maintenance and Serviceability Consider machines that are designed for easy maintenance and serviceability. This may include features such as accessible rollers, lubrication points, and quick-change mechanisms for dies or rollers.
