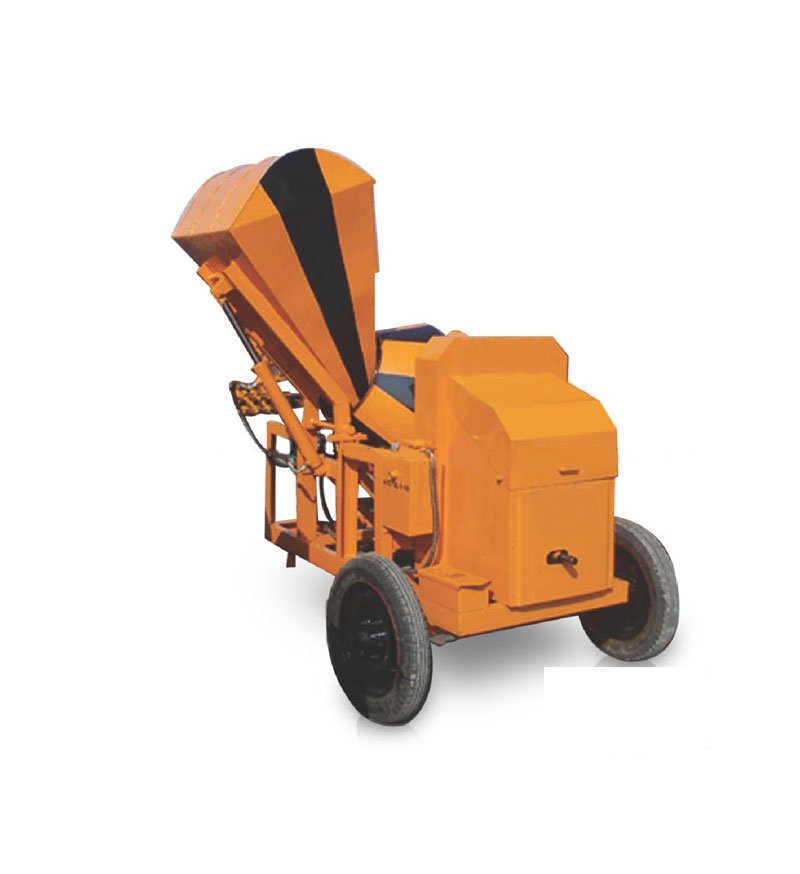

Specifications / Hydraulic Concrete Mixer Machine Drum Capacity 10/7 Cft Capacity 10/7 Cft Overall Dimension 2550 x 1680 x 2600 Prime Mover 6 HP Kirloskar Tafi Engine / 5 HP Electric Motor Prime Mover Cabin With Sliding Door Loading Hooper Hydraulic Operated with Heavy Duty Power Pack Concrete Mixing Time 3 minute approximate Drum Speed 19 RPM Hydraylic Pump 19 Ipm gear pump @ 207 bar Here’s an overview of how a hydraulic concrete mixer machine typically works: Loading The ingredients are loaded into the mixer drum. This can be done manually or by using a conveyor belt, depending on the specific design of the machine. Mixing Once the ingredients are in the drum, the hydraulic system powers a set of rotating blades or paddles inside the drum. These blades mix the ingredients together by lifting and dropping them repeatedly, ensuring a thorough and uniform blend. The hydraulic system provides the necessary power to rotate the blades and maintain the desired mixing speed. Discharging After the mixing process is complete, the hydraulic system tilts the drum to pour the mixed concrete. The drum can be rotated to different angles to control the pouring direction and speed.
