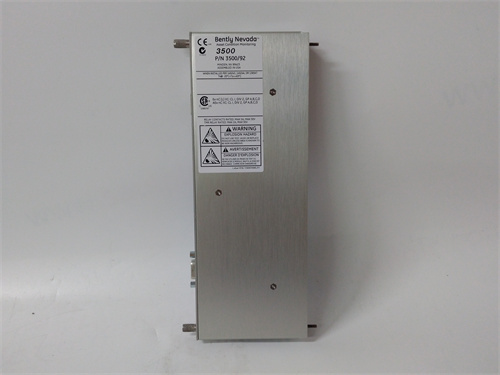

Description Key Technical Specifications Parameter Value Model Number 3500/92 Part Number 136188-01 Type Communication Gateway Module Compatible Rack 3500 Monitoring System Ethernet Ports 2 x 10/100Base-T (RJ45) Supported Protocols Modbus TCP Server, OPC DA/HDA, Proprietary Bently Protocol Maximum Clients 10 (simultaneous Modbus TCP connections) Data Mapping Configurable point maps for Modbus registers Power Requirements 5 VDC and 24 VDC from 3500 rack backplane Indicators Status LEDs for Power, Ethernet Link/Activity, Fault Operating Temp 0°C to 65°C Mounting Installs in 3500 rack (occupies one slot)   Product Introduction The BENTLY 3500/92 136188-01 is the communication gateway module for the industry-standard 3500 Series machinery monitoring system. If you have a rack full of vibration monitors (3500/40, 3500/42, etc.) protecting your turbines or compressors, this is the module that gets that data out of the rack and into your DCS, PLC, or SCADA system. It acts as a bridge, taking the internal data bus of the 3500 rack and serving it up over Ethernet using standard protocols like Modbus TCP. You can configure it to map specific vibration values, temperature readings, and alarm statuses directly into your control system’s memory registers. This particular unit (136188-01) is a common revision. We have a mix of new surplus and fully tested used units available. Lead times from Bently can be long for these, so checking stock is wise. Prices fluctuate; contact us for a current quote.  Frequently Asked Questions (FAQ) Q: What’s the difference between the 3500/92 and the 3500/22 (TDI)? A: The 3500/22 (TDI) is the main “Transient Data Interface” used primarily for communicating with Bently’s System 1 software for advanced diagnostics and transient data. The 3500/92 is a simpler, more focused communication gateway designed to interface with DCS and PLC systems via Modbus TCP. In a typical setup, you might have both: the /92 for basic process values to the DCS, and the /22 for high-speed data to a diagnostic workstation. Honestly, if you just need to get vibration values into your control system for monitoring and alarming, the 3500/92 is usually the right tool. Q: Can I replace a 3500/92 myself, or does Bently need to be involved? A: You can replace it yourself, but you must follow the proper procedure. The 3500/92 is not hot-swappable in the same way the I/O modules are. You need to remove power from the entire rack before swapping the module. Also, the configuration (IP address, Modbus register maps) is stored in the module. You must have a backup of that configuration to load into the new module. If you don’t have the backup, you’ll need to reconfigure it from scratch using the 3500 Rack Configuration software, which requires a serial connection and the software. Q: How many Modbus registers can this module handle? A: It’s configurable, but there are practical limits. You can map a substantial amount of data. The exact number depends on the types of monitors in your rack and how many points you need. You typically map each channel’s “direct value” (like overall vibration), plus its alarm statuses. The configuration software lets you build a custom register map. The module can handle a few hundred registers without breaking a sweat, but if you try to map every single possible value from a full 24-slot rack, you might hit performance limits. Plan your data mapping carefully. Q: My module shows a red “Fault” LED. What does that mean? A: A steady red Fault LED usually indicates a hardware failure or a critical internal error. It could also be a communication failure on the rack’s internal bus. First, try a power cycle of the entire rack (if safe to do so). If the fault persists, the module is likely bad. The 3500/92 is a complex piece of electronics; they do fail occasionally. We stock replacements for exactly this reason. Q: Is this module compatible with my old 3500 rack from the 90s? A: Yes, the physical and electrical interface of the 3500 rack has been consistent for decades. A modern 3500/92 will fit and communicate in a very old rack. However, you need to be aware of the firmware version. An older rack may require a specific, older firmware revision on the /92 for perfect compatibility. When ordering a replacement, it is always best to give us the part number and the firmware version (if known) from your old module. We can often match it. DM-20 PLC DSA-MTR-600 PLC E372-013-404 PLC F-4030-O-H00AA PLC MC-D5006-A PLC MD-D4002B PLC S-D4006-D PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
