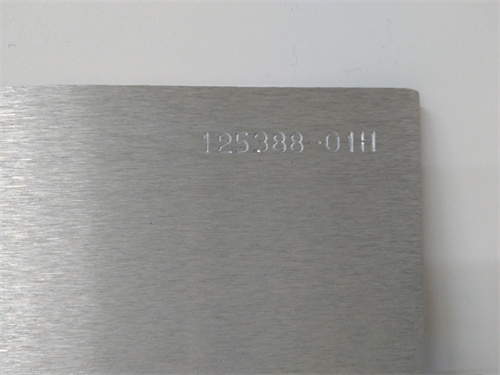

Description Product Introduction Every 3500 rack needs clean DC power to run the monitors. The 125388-01 is the AC-input version of the 3500/15 power supply—it takes plant power (110 or 220 VAC) and converts it to the regulated DC voltages the backplane requires. Slide it into slot 1 (and slot 2 if you’re running redundant). What’s the difference between this and the 127610-01? Input voltage. The 127610-01 is 24 VDC input; the 125388-01 is AC. In my experience, this matters when you’re spec’ing a system. If the plant has a dedicated 24 VDC UPS feeding the rack, use the 127610. If you’re pulling straight from the panel, use this one. The 125388-01 auto-ranges between 110 and 220 VAC—no jumpers to set. It’s a set-it-and-forget-it module. Key Technical Specifications Parameter Value Model 3500/15 (Rack Assembly) Module Part Number 125388-01 Brand Bently Nevada Series 3500 Product Type Power Supply Module (AC Version) Input Voltage 110/220 VAC nominal (90–264 VAC auto-ranging) Input Frequency 47–63 Hz Output Power 85 Watts (maximum) Output Voltages 5 VDC, 15 VDC, -15 VDC (to backplane) Rack Slots Occupied 1 slot per power supply Redundancy Support Yes—supports 1 1 redundant configuration Protection Overcurrent, overvoltage, short circuit Indicators Front-panel OK LED (green), Fault LED (red) Compatible Racks 3500/05, 3500/10, 3500/20 Temperature Rating -40 °C to 70 °C operating Weight Approx. 0.6 kg (1.3 lbs) Certifications CE, UL, CSA, ATEX (for hazardous locations)  Firmware / Software Versions & Upgrade Notes Here’s the deal with the 125388-01: it’s a power supply. No firmware. No software. No configuration. No Firmware: The module uses analog control circuits. There’s nothing to flash or upgrade. If it fails, it fails completely—replace it. Hardware Revision: Look for Rev 2 or later on the side label. Rev 1 had a known issue with the input filter capacitors—they would dry out faster in high-temperature environments (think Middle East compressor stations). Rev 2 upgraded the capacitor specs. LED Behavior: Green OK LED = module working Red Fault LED = input out of range, output overcurrent, or internal failure No LEDs = dead module or no input power Compatibility: Works with all 3500 racks and all monitoring modules. The Rack Interface Module (RIM) in slot 1 reads the power supply status and reports it to the system software. Compatibility & Replacement Matrix Use this when selecting or replacing power supplies in a 3500 rack. Original Model Replacement Model Compatibility Level Key Notes 125388-01 125388-01 Drop-in Identical part. Direct replacement. 125388-01 125388-02 Drop-in The -02 suffix indicates a later revision. Electrically identical. Same form factor. Direct replacement. 125388-01 127610-01 Incompatible 127610-01 is the 24 VDC input version. Will not accept AC input. Do not swap unless you change the plant power source. 125388-01 125840-01 Incompatible 125840-01 is a different power supply for the 3500/50 series (older systems). Won’t fit in a 3500 rack. 125388-01 Rev 1 125388-01 Rev 2 Drop-in Later revision supersedes earlier. Improved capacitor life. Direct replacement. IIATS01 PLCCPU IIATB02 DCS IIATB01 CPUI/O IEPAS02 PLC IIAKB03A PLC IIAKB PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
