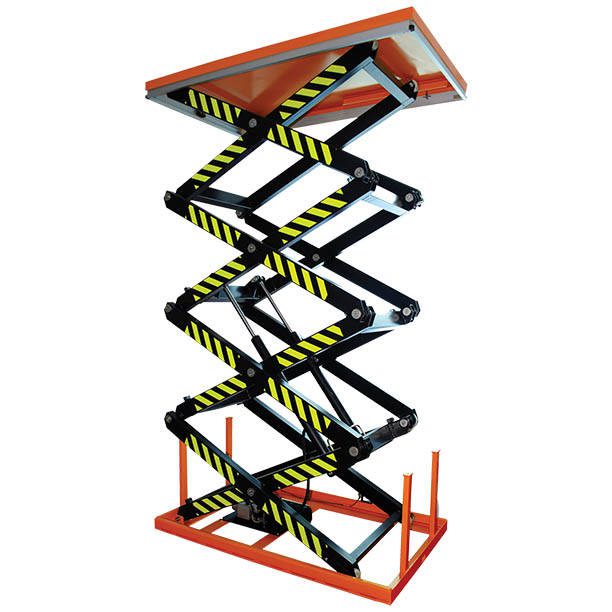

SHF Electric quadruple scissors lift table 400 and 800 kg

Introduction of Electric Quadruple Scissor Lift Table The electric quadruple scissor lift table is a premium high-reach lifting solution designed for applications requiring exceptional vertical lifting height in a compact footprint. With load capacities of 400 or 800 kg and a maximum lifting height of up to 4210 mm, it offers outstanding stability, robustness, and precise lifting performance. Equipped with a Bucher hydraulic power unit, high-end components, and comprehensive safety features, this lift table is ideal for industrial, warehouse, and maintenance operations where safe and efficient high-level material handling is essential. Details of Electric Quadruple Scissor Lift Table Premium Electric quadruple scissors lift table with a capacity of 400 or 800 kg Platform dimension: 1700 x 1000 mm Lift height min. / max: 600 / 4140 mm (SHF400) or 706 / 4210 mm (SHF800) Bucher hydraulic electro-pump Fitted with high-end components Excellent overall robustness Safety clearance to prevent trapping during operation Shear protection Self-lubricated rollers and bushings Lowering speed control valve Hose burst valve Quadruple scissors table Safety trip bars Upper travel limit switch Hand controller with 4m cable Download the product specifications for further technical information Options 220V single-phase available on request Specifications of Electric Quadruple Scissor Lift Table Model Unit SHF400 SHF800 Load capacity kg 400 800 Plate dimensions (L×W) mm 1700×1000 1700×1000 Base dimensions (L×W) mm 1600×1000 1606×1010 Min / max lifting height mm 600 / 4140 706 / 4210 Raising time s 30–40 70–80 Motor 380 V / 50 Hz kW 2.2 2.2 Weight kg 548 858 Advantages of Electric Quadruple Scissor Lift Table Exceptional lifting height up to 4210 mm, ideal for multi-level operations and high-reach applications Load capacities of 400 or 800 kg, suitable for light to medium-duty industrial handling Quadruple scissor structure ensures maximum vertical reach with excellent platform stability Equipped with a Bucher hydraulic electro-pump for smooth, reliable, and efficient lifting performance Heavy-duty construction with high-end components delivers excellent robustness and long service life Comprehensive safety features, including shear protection, safety clearance, safety trip bars, hose burst valve, and upper travel limit switch Lowering speed control valve provides smooth and controlled descent Self-lubricated rollers and bushings reduce wear and maintenance requirements User-friendly hand controller with a 4 m cable for safe and convenient operation Optional 220V single-phase power supply available on request Ideal for industrial, warehouse, maintenance, and production environments requiring safe high-level lifting solutions
