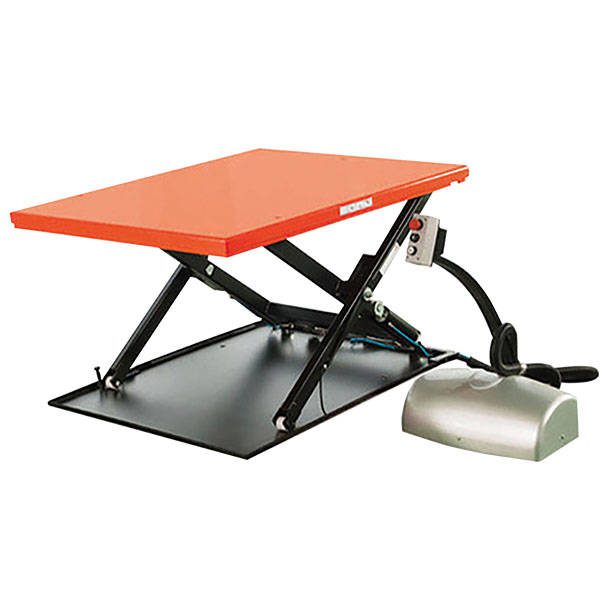

HYLC1000 Low-Profile Budget Electric Lift Table 1000 kg

What is HYLC1000 Low-Profile Electric Lift Table? The HYLC1000 Low-Profile Budget Electric Lift Table is a motorized lifting platform designed for easy loading and lifting of heavy goods directly from floor level. Its low-profile design allows pallets, carts, or equipment to be rolled onto the platform without the need for a pit installation, making it a practical and cost-effective solution for warehouses, workshops, and production lines. Powered by a 380 V / 50 Hz, 0.75 kW motor, the table raises loads in approximately 18 seconds and is operated via a single 3 m cable that controls both the power unit and hand control. For safe operation, it includes safety clearance protection and an access ramp for easy loading and unloading. Overall, the HYLC1000 is an economical electric lifting solution ideal for improving efficiency, safety, and ergonomics in material-handling tasks. Details of HYLC1000 Low-Profile Electric Lift Table Low-profile budget electric lift table has a load capacity of 1000 kg Platform dimensions: 1450 x 1140 mm Lift height min. / max.: 82 / 760 mm Single 3 m cable for power unit and handle control Safety clearance to prevent trapping during operation Includes access ramp Download the product specifications for further technical information Specification of HYLC1000 Low-Profile Electric Lift Table Model Unit HYLC1000 Load capacity kg 1000 Plate dimensions (L×W) mm 1450×1140 Min / max lift height mm 82 / 760 Raising time s 18 Motor 380 V / 50 Hz kW 0.75 Weight kg 250 Features of HYLC1000 Low-Profile Electric Lift Table Low-Profile Design Minimum height of 82 mm allows easy loading directly from floor level without pit installation. Fast Lifting Speed Raises loads in approximately 18 seconds, improving workflow efficiency. Wide Lifting Range Lift height from 82 mm to 760 mm, enabling ergonomic working positions and reducing manual strain. Single Cable Control System One 3 m cable operates both the power unit and hand control for simple and convenient use. Safety Clearance Protection Built-in safety design helps prevent trapping during operation. Integrated Access Ramp Includes a loading ramp for easy pallet and trolley entry. Cost-Effective Electric Solution Budget-friendly lift table offering reliable performance and improved workplace safety.
