DUAL-ZEISS- DUAL Series Saddle for Zeiss dovetail. 8mm Counterbored Version.
$35.7
$43.2

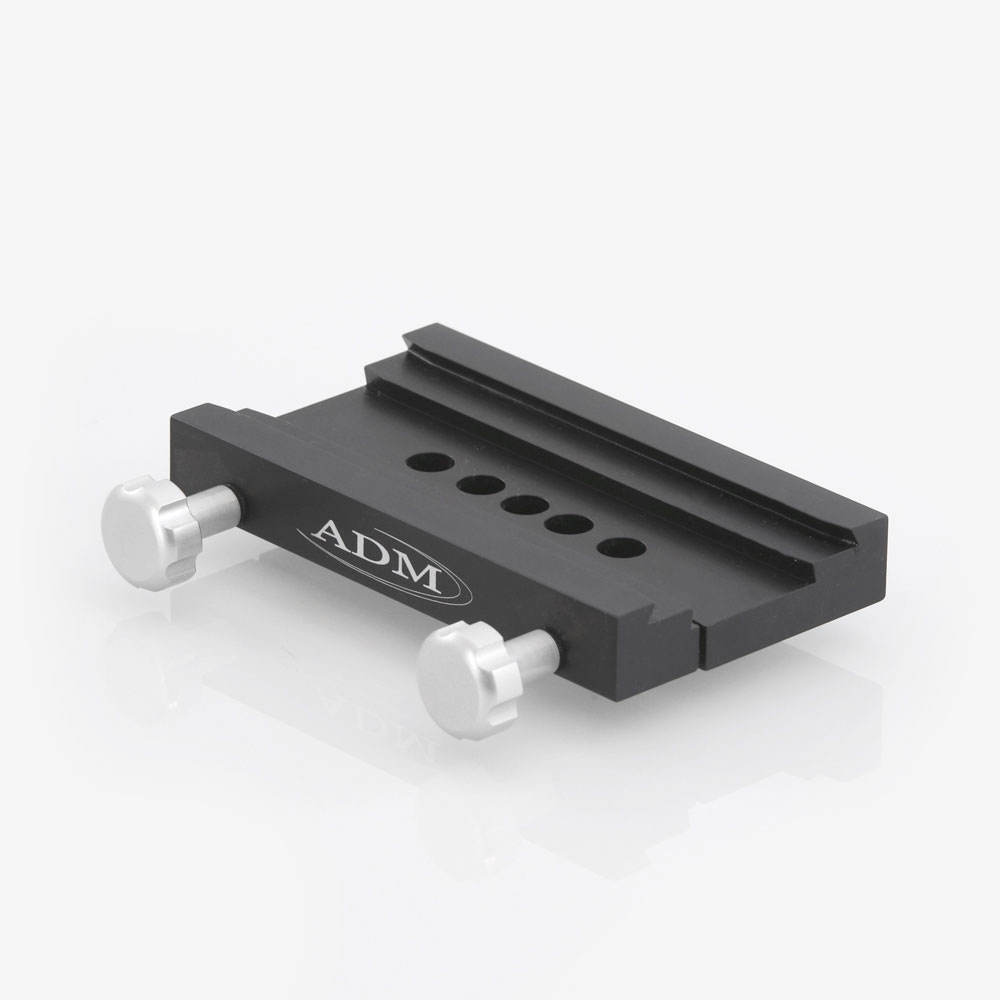

Description Designed specifically to fit 1.5″ wide dovetails commonly used by Zeiss, Baader and Astrophysics. The saddle shown in the images has counterbored holes 35mm center to center and 3″ center to center for an 8mm socket head cap screw. Fits many ADM Accessories mount adapters as well as the Losmandy G11 and some Takahashi mounts. If you would like this saddle added to an ADM Accessories adapter please add a special note on the checkout page. The saddle accepts both D Series and V Series dovetail bars. 2 holes 3″ apart, 2 holes 35mm apart for a 5/16″ or 8mm socket head cap screw. The split clamp design grips the dovetail bar along the entire surface of the saddle and will not dent or scratch the dovetail bar. Features two large locking hand knobs for tool free operation, spring loaded jaws, anodized aluminum and stainless steel construction. 7″ Long, 4″ Wide, .75″ thick, Wt. 26 oz.
