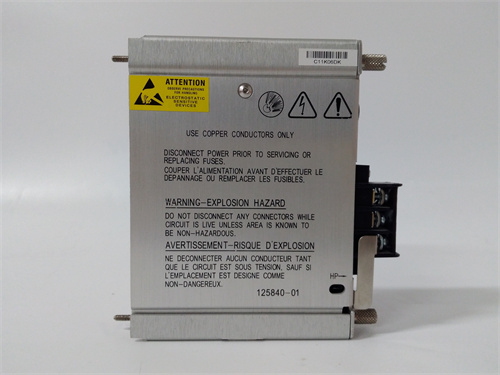

Description Introduction and Overview The BENTLY 3500/15 125840-01 is a high-reliability AC power supply module manufactured by Bently Nevada (now part of Baker Hughes) for use in the 3500 Series machinery protection monitoring systems. This power supply module provides stable, regulated DC power to the 3500 rack and all installed monitoring modules, ensuring continuous operation of critical rotating machinery protection systems. The BENTLY 3500/15 125840-01 is engineered for demanding industrial environments where uninterrupted power is essential for reliable machinery monitoring. As a fundamental component of the Bently Nevada 3500 Series system, the BENTLY 3500/15 125840-01 embodies Bently Nevada’s decades of experience in machinery protection and condition monitoring. The module is designed to meet the stringent requirements of API 670 standards for machinery protection systems, providing the reliable power foundation necessary for continuous monitoring of critical assets. The BENTLY 3500/15 125840-01 represents a proven power solution for ensuring high availability in power generation, oil and gas, and industrial processing applications. Technical Parameters The BENTLY 3500/15 125840-01 AC power supply module is engineered for reliable power delivery in industrial environments. Its key specifications include: Product Type: AC Power Supply Module for 3500 Series Systems Part Number: (complete assembly) Compatible System: Bently Nevada 3500 Series Machinery Protection System Input Voltage: 90-250V AC (auto-ranging), 47-63 Hz Output Voltages: 5V DC, 15V DC, -15V DC, 24V DC Output Power: Sufficient for fully loaded 3500 rack Redundancy Mode: Supports 1 1 redundant configuration Hot-Swap Capability: Supports replacement without system shutdown Protection Features: Overvoltage protection Overcurrent protection Short-circuit protection Thermal shutdown Isolation: Input-to-output isolation for safety and noise reduction Indicators: Front-panel LEDs for power OK and fault status Alarm Output: Form C relay contacts for remote fault indication Cooling: Convection cooled (no internal fan) for increased reliability Mounting: Directly mounts in 3500 Series rack Operating Temperature: -30°C to 65°C (industrial extended temperature range) Storage Temperature: -40°C to 85°C Humidity: 5% to 95% non-condensing Certifications: CE, UL, CSA, designed to meet API 670 standards The provides the reliable, regulated power essential for continuous machinery protection monitoring. Advantages and Features The primary advantages of the lie in its high reliability, redundancy capability, and seamless integration with 3500 Series systems. High Reliability Industrial Design: The is built with industrial-grade components and rigorous manufacturing processes, ensuring long-term stable operation in harsh environments such as power plants and petrochemical facilities. The module undergoes extensive testing and quality verification to withstand vibration, temperature variations, and electrical noise. The high reliability is the foundation for continuous machinery protection monitoring. Redundant Power Support: The supports 1 1 redundant configuration where two power modules operate in parallel, sharing the load. If one power module fails, the other immediately assumes the full load, ensuring uninterrupted monitoring system operation. This redundancy capability is essential for critical rotating machinery that requires continuous protection. The redundant configuration ensures maximum system availability. Hot-Swap Capability: The supports hot-swap functionality, allowing replacement of a faulty power module while the system continues to operate. This feature significantly improves system availability and maintenance convenience, as maintenance personnel can replace a power module without shutting down the monitoring system. The hot-swap design eliminates monitoring interruptions during power maintenance. Wide Input Voltage Range: The accepts a wide range of AC input voltages from 90-250V AC, automatically adapting to different regional power standards. This wide input range simplifies international project power configuration and reduces installation issues caused by power specification mismatches. The wide input voltage capability makes it ideal for global applications. Comprehensive Protection Features: The incorporates multiple protection circuits including overvoltage protection, overcurrent protection, short-circuit protection, and thermal shutdown. When abnormal conditions are detected, the power module automatically limits output or shuts down to prevent damage to itself and connected monitoring modules. The protection features significantly enhance overall system reliability and safety. Remote Alarm Indication: The provides Form C relay contacts for remote fault indication. This feature allows operators to monitor power supply status from the control room and respond quickly to power-related issues. The remote alarm capability greatly improves system monitorability. Visual Status Indication: Front-panel LEDs on the provide immediate visual indication of power OK and fault conditions. These indicators enable maintenance personnel to quickly assess power module status without additional test equipment, significantly simplifying field diagnostics. Seamless 3500 System Integration: As a native Bently Nevada 3500 Series component, the integrates perfectly with 3500 racks and monitoring modules, ensuring reliable mechanical and electrical connections. When installed in the rack, the module automatically connects to the system backplane, providing stable power distribution to all monitoring modules. Application Fields and Use Cases The is widely used in critical rotating machinery protection systems requiring continuous, reliable power. Power Generation Industry: In gas turbines, steam turbines, hydroelectric turbines, and generators, the provides stable power for 3500 Series monitoring systems. The module’s high reliability ensures continuous monitoring of vibration, displacement, and other critical parameters, providing reliable protection for generating units. The in power generation applications fully demonstrates its value. Oil and Gas Industry: In refineries, ethylene plants, and fertilizer facilities, the powers monitoring systems for compressors, pumps, and fans. The redundant configuration ensures continuous monitoring system operation, avoiding monitoring interruptions due to power supply failures. Natural Gas Transmission: In pipeline compressor stations, the provides reliable power for compressor unit monitoring systems. The module’s high reliability ensures continuous operation of natural gas transmission systems, critical for energy supply security. Offshore Oil and Gas Platforms: On offshore production platforms, the powers monitoring systems for main power generation gas turbines, compressors, and pumps. The wide input voltage range and rugged design adapt to the harsh marine environment. Metallurgical Industry: In blast furnace blowers, rolling mill motors, and oxygen generators, the provides stable power for monitoring systems, ensuring continuous and stable operation of metallurgical production lines. Paper Industry: In critical bearing monitoring systems for large paper machines, the provides reliable power for vibration monitoring systems. Comparison with Competing Products The competes with power modules from other machinery protection system manufacturers such as EPRO (MMS6000 series power modules), GE (Sensonics system power modules), and Vibro-Meter (VM600 series power modules). Advantages of: As a native power module for the Bently Nevada 3500 Series system, the perfectly matches 3500 racks and monitoring modules, ensuring optimal compatibility and performance. Bently Nevada’s decades of experience in rotating machinery monitoring are reflected in the design of the , with reliability and performance proven in tens of thousands of installations worldwide. The redundant support and hot-swap functionality are competitive advantages. Disadvantages: The is designed specifically for Bently Nevada 3500 systems and cannot be directly used with other brands’ monitoring systems. As an original component, the price is typically higher than general industrial power supplies, reflecting its specialized design and quality assurance. Selection Suggestions and Precautions When selecting and implementing the , consider the following recommendations: System Compatibility Verification: The is designed specifically for Bently Nevada 3500 systems. Verify that your 3500 rack model is compatible with the . Power Requirements Calculation: Calculate the total power consumption of all monitoring modules in the 3500 rack to ensure the output capacity meets system requirements. For redundant configurations, each power module should be capable of independently supporting the full load. Redundancy Configuration Planning: For critical machinery continuous monitoring, redundant power configuration is recommended. Use two modules operating in parallel, connected to independent power circuits, to improve system reliability. Input Power Configuration: Verify that the installation site’s power voltage is within the input range. For redundant configurations, connect the two power modules to different power circuits to avoid single-point power failures. Alarm Output Connection: Connect the dry contact alarm output to DCS or monitoring systems for timely notification and response to power supply issues. Spare Parts Strategy: For critical monitoring systems, maintain spare modules in inventory for rapid replacement in case of failure, minimizing monitoring interruption time. Safety Precautions: The involves high voltage power, and its installation and maintenance must follow strict safety practices: All installation, configuration, and maintenance work must be performed by qualified personnel trained on Bently Nevada systems Follow all site safety procedures, including lockout/tagout requirements, when working on monitoring systems Be aware that capacitors inside the power module may retain hazardous voltages even after power is disconnected; allow sufficient discharge time Ensure proper grounding of the power module according to electrical codes Do not exceed the rated output power of the Follow all guidance in the official Bently Nevada installation manuals and technical documentation Regularly inspect the status indicators and promptly address any abnormalities NI-9025 PLC NI-9031 PLC NI-9036 PLC NI-9112 PLC NI-9157 NI-9159 PLC NI-9203 PLC Email: [email protected] Phone: 86 15340683922 Sales:Wu Jiedong Our products are guaranteed for 1 year, with new and original production stopped and imported spare parts. All prices listed on the official website are subject to confirmation by contact: Wu Jiedong (manager). Our product: brand new original packaging Our warranty: All new or repaired parts have a 12 month warranty period beginning Our payment: 100% telegraphic transfer of inventory items before shipment, conditions can be proposed! If you have any downtime spare parts that you cannot find, please feel free to call or use email to contact me. If there are issues that the product cannot solve, please contact me. Product prices can be negotiated. Please do not consider contacting me!
