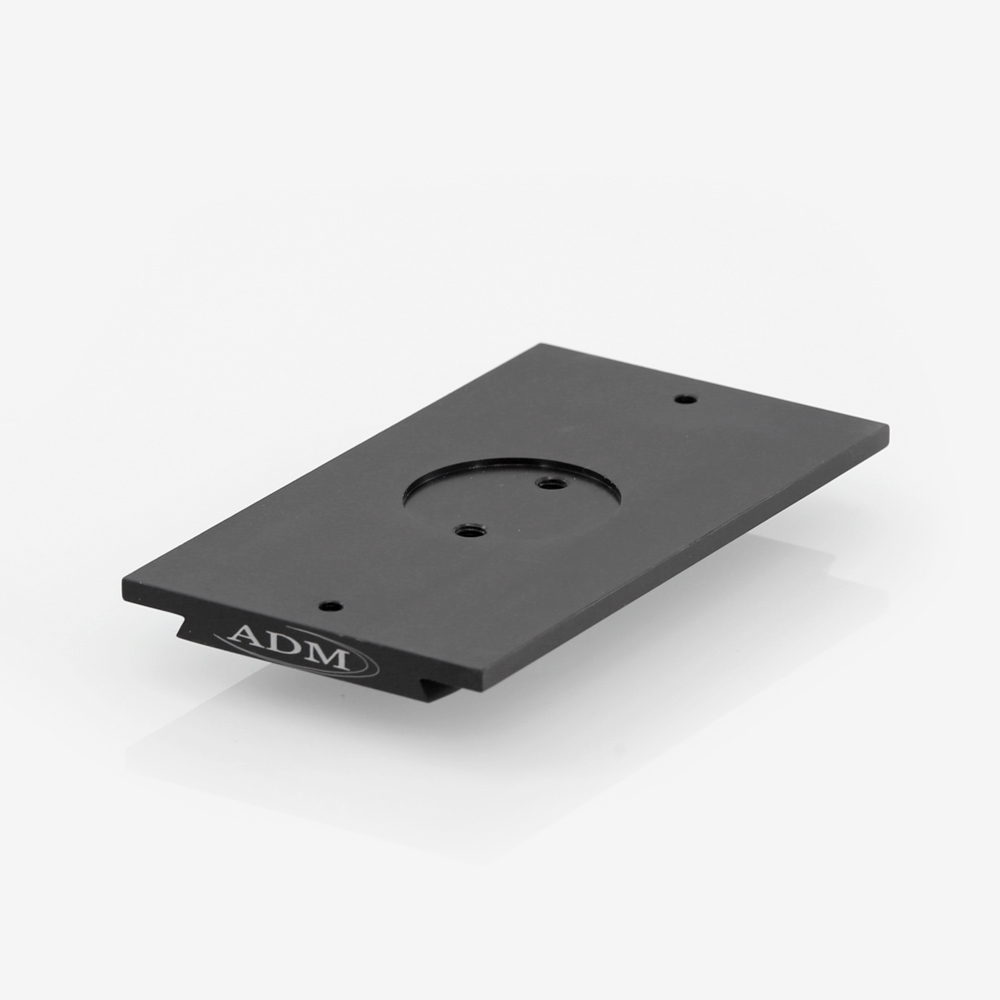

D Series Universal Dovetail Bar for Takahashi. DUP7T, DUP11T, DUP15T

Description DUP7T– Fits D Series saddles and accessories. The dovetail is designed specifically for mounting the Takahashi tube ring. The circular depression matched the raised flange found on Takahashi tube rings. The tapped M8 holes are 35mm center to center. 7″ Long, 4″ wide plate, 3″ wide dovetail, .5″ thick, Wt. 16 oz. DUP11T– Fits D Series saddles and accessories. The dovetail is designed specifically for mounting the Takahashi tube ring. The circular depression matched the raised flange found on Takahashi tube rings. The tapped M8 holes are 35mm center to center. 11″ Long, 4″ wide plate, 3″ wide dovetail, .5″ thick, Wt. 28 oz. DUP15T– Fits D Series saddles and accessories. The dovetail is designed specifically for mounting the Takahashi tube ring. The circular depression matched the raised flange found on Takahashi tube rings. The tapped M8 holes are 35mm center to center. 15″ Long, 4″ wide plate, 3″ wide dovetail, .5″ thick, Wt. 40 oz.
